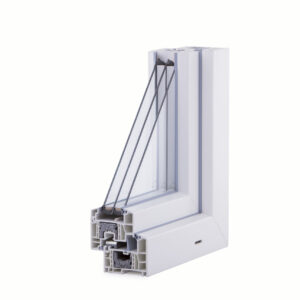

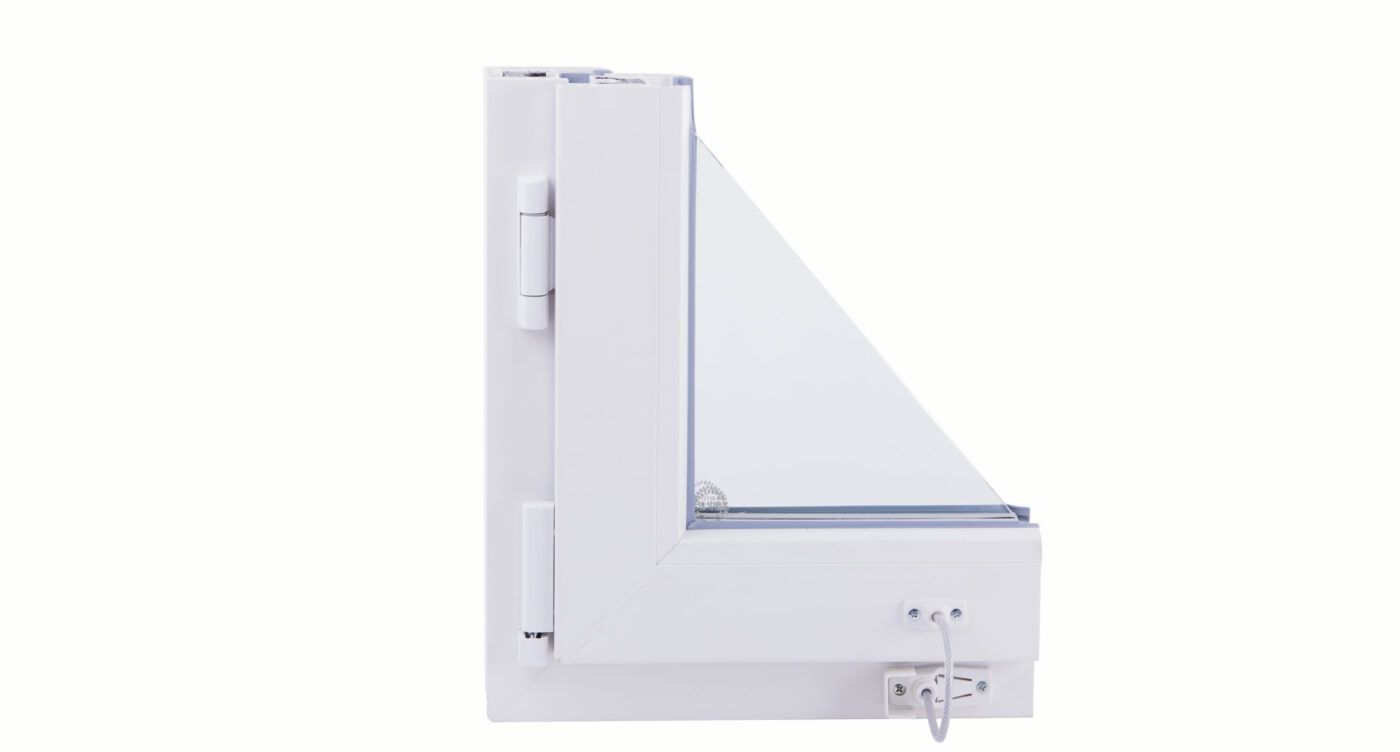

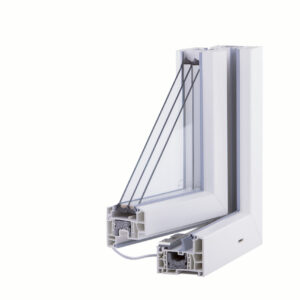

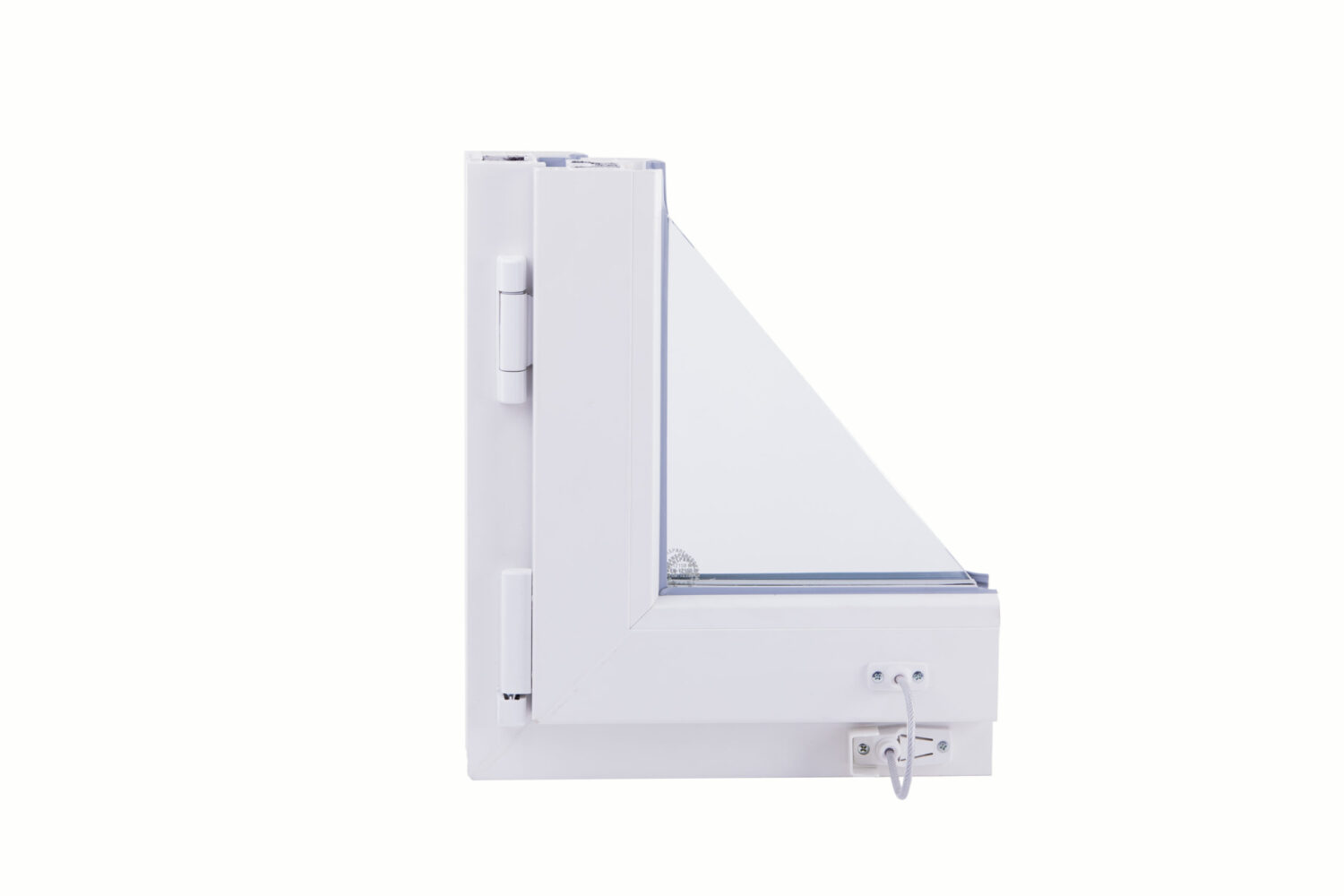

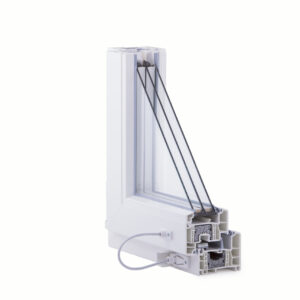

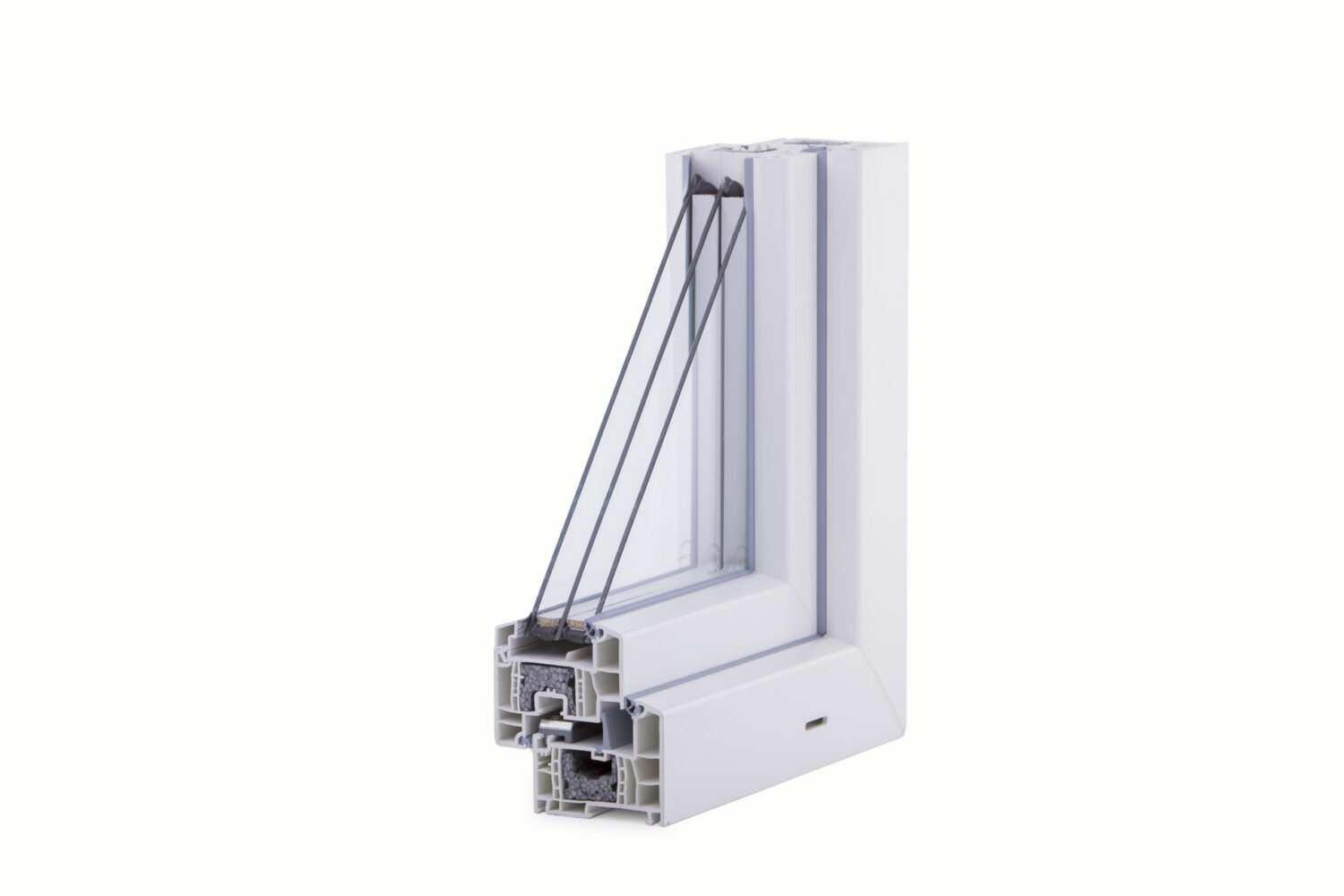

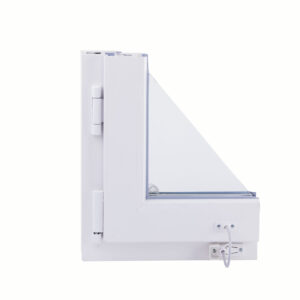

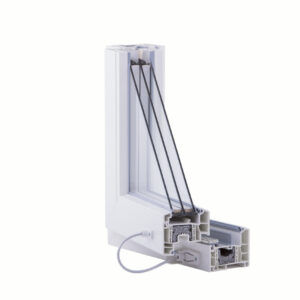

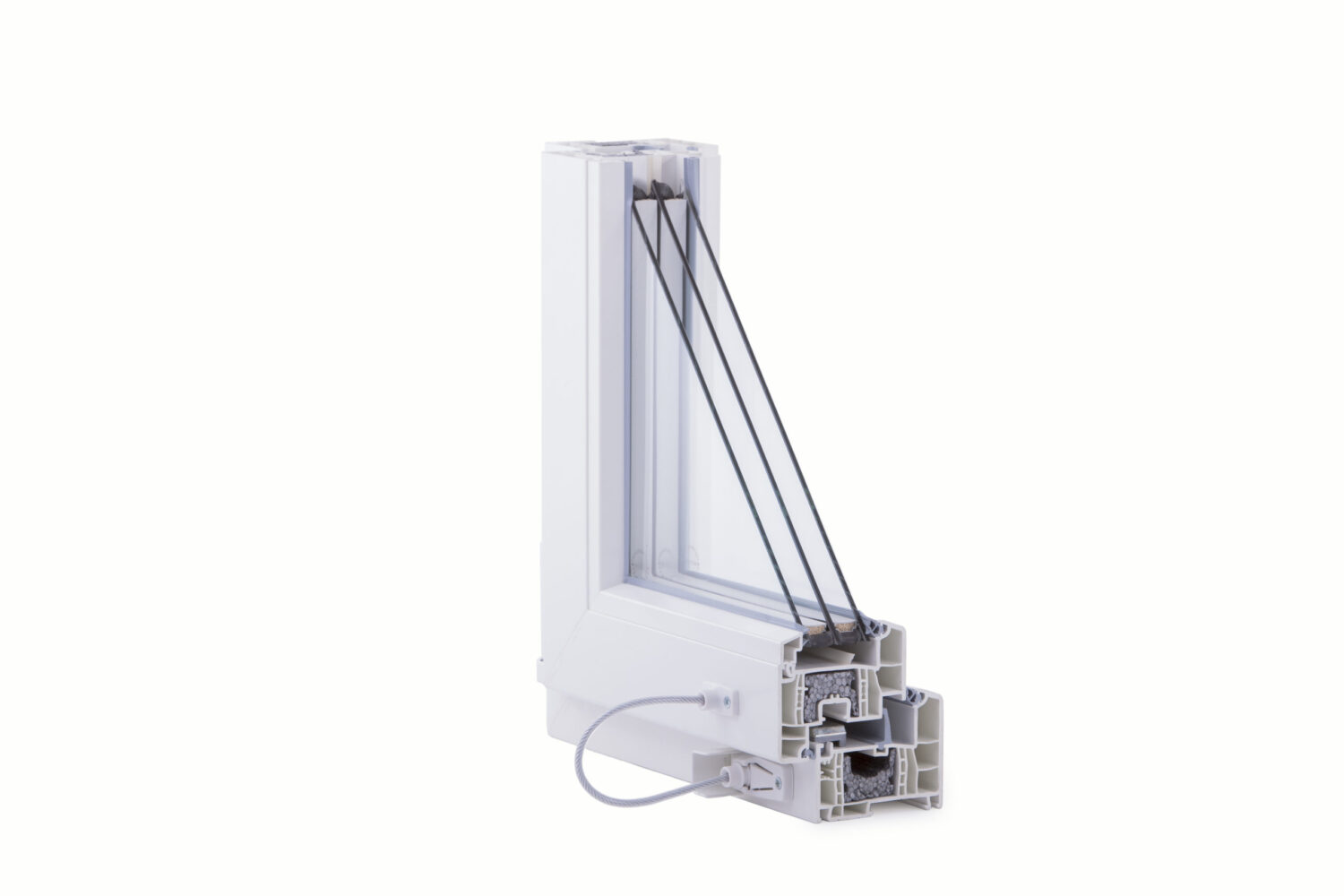

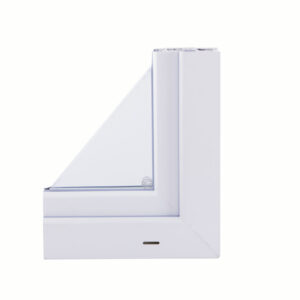

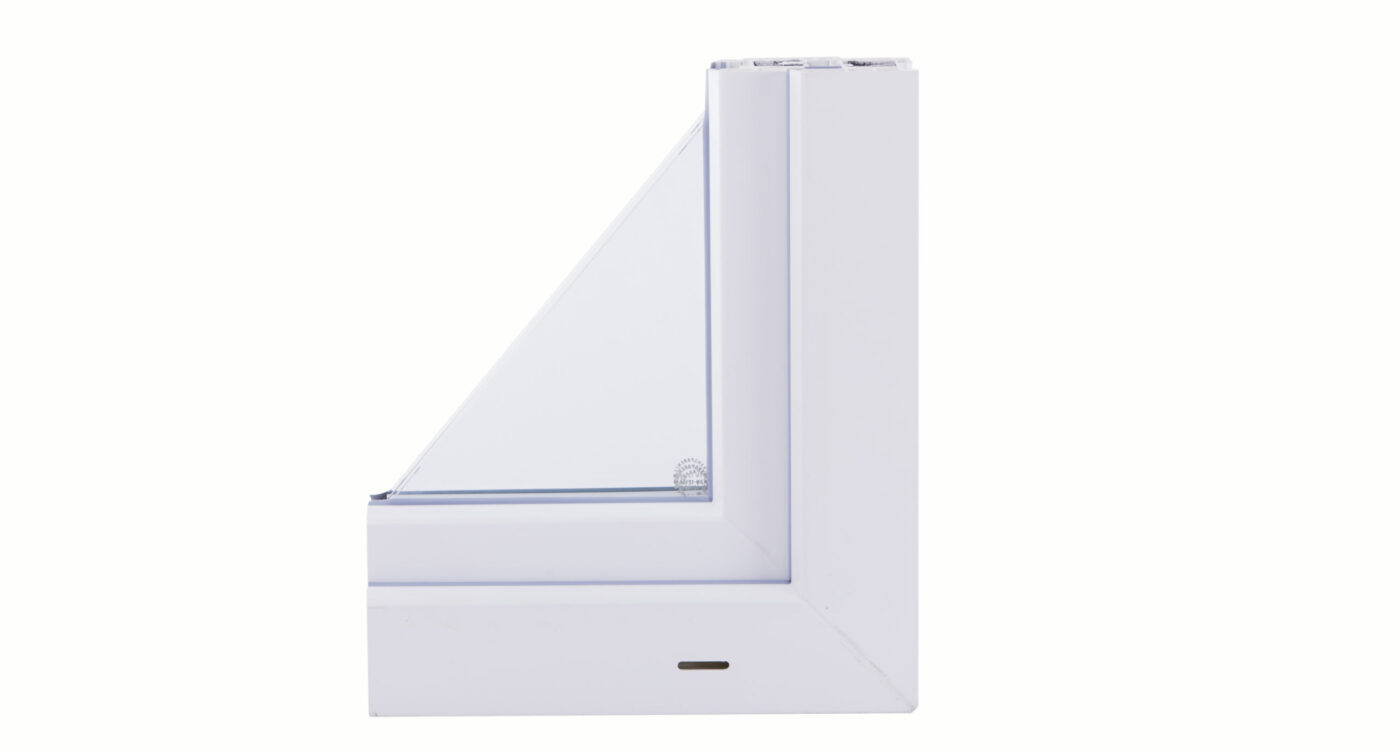

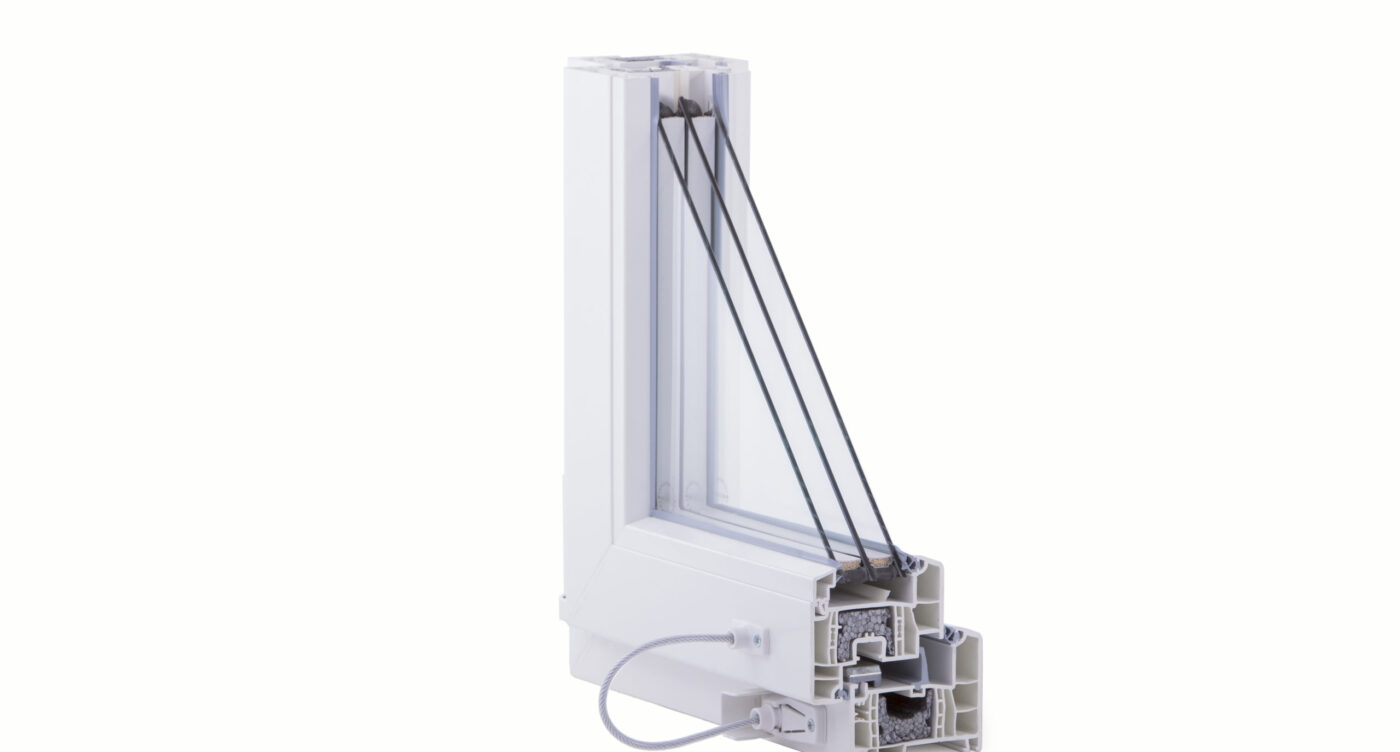

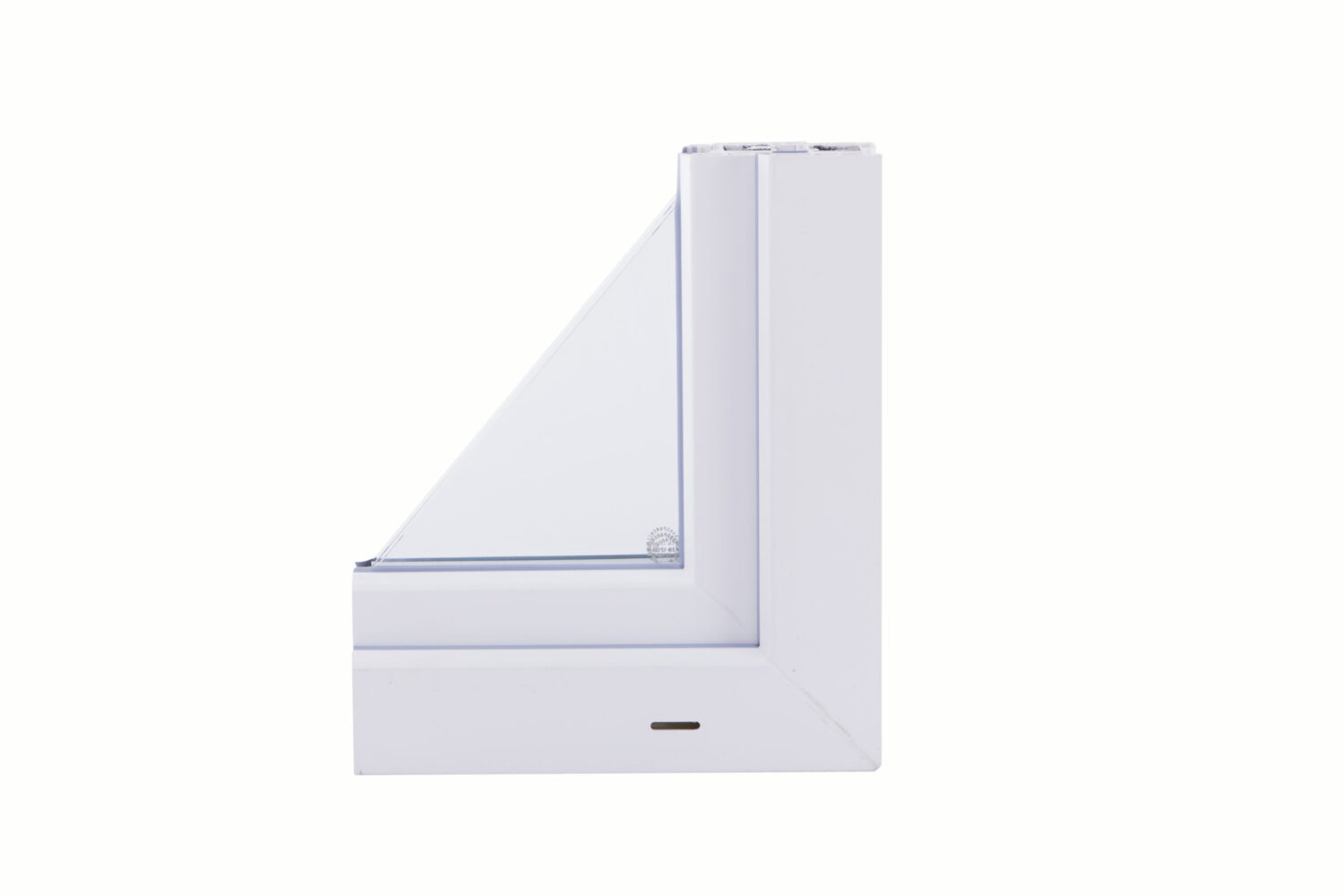

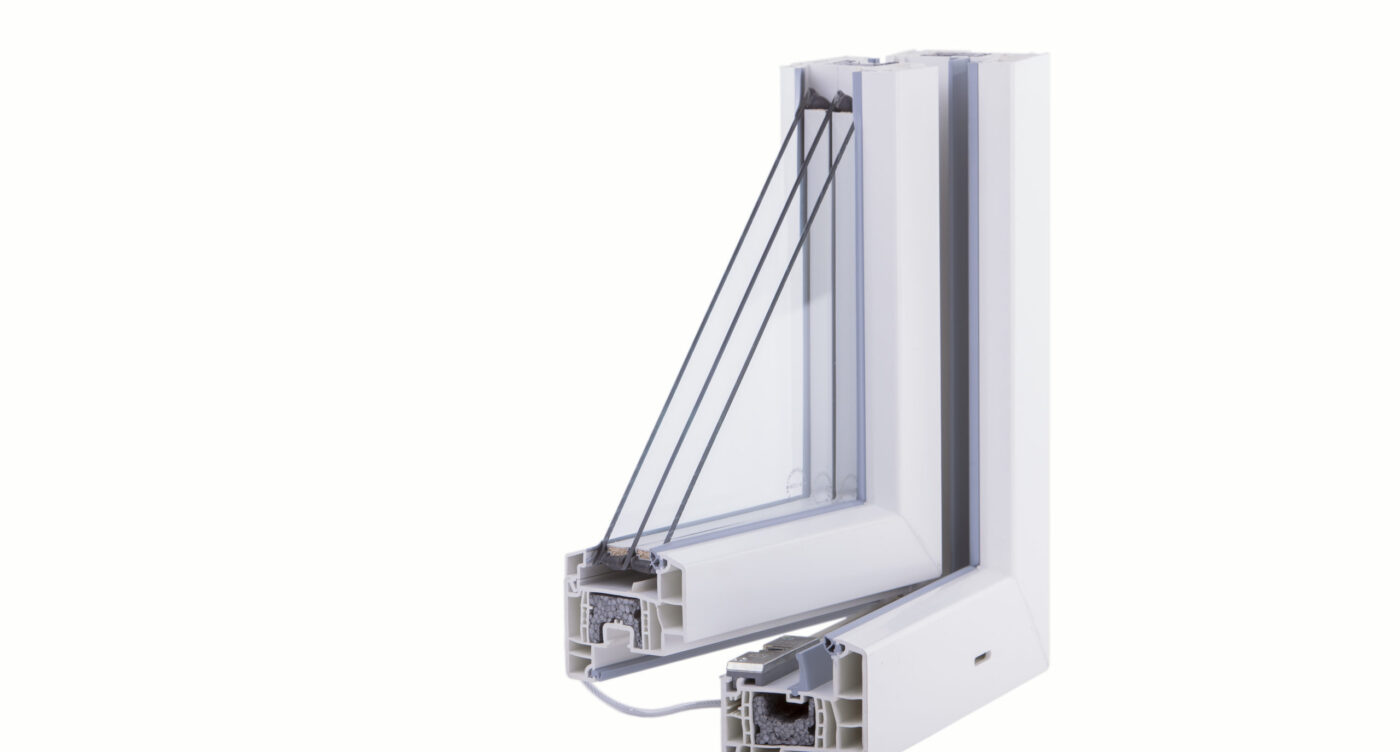

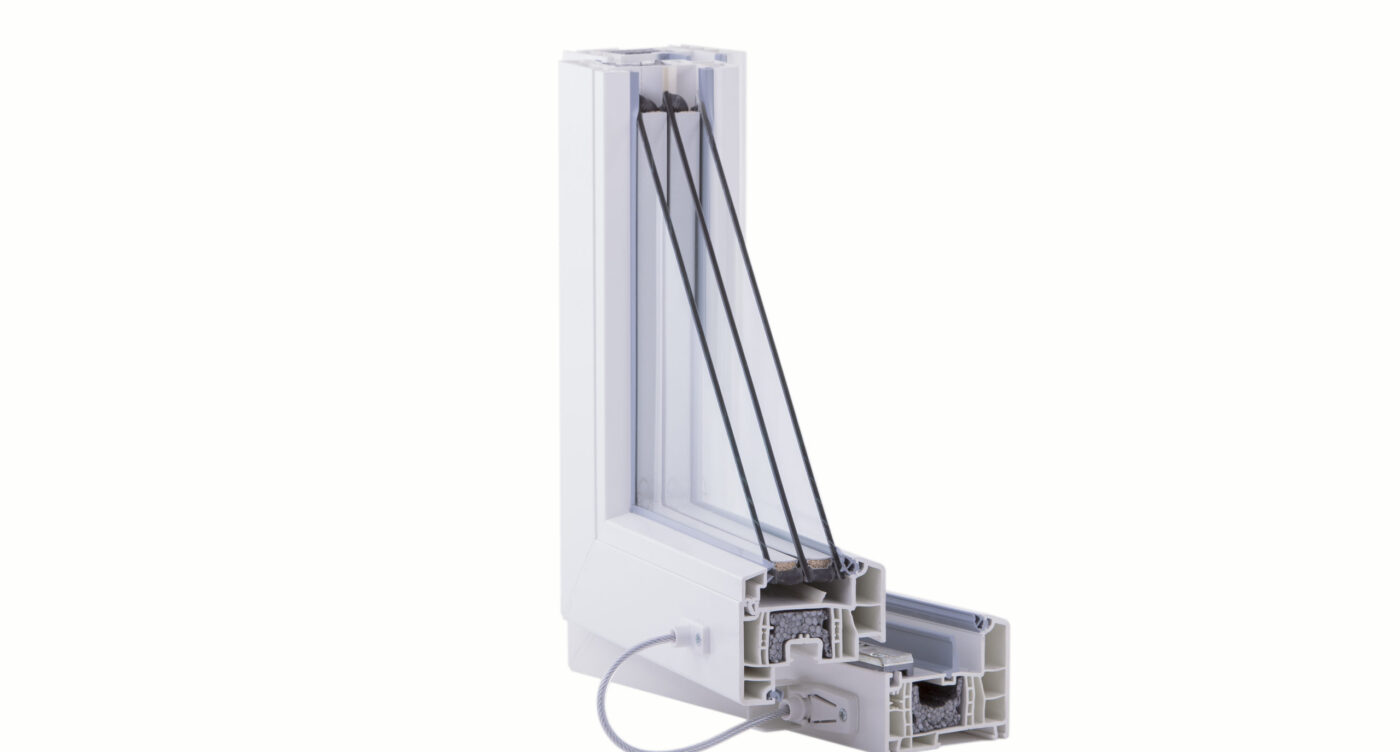

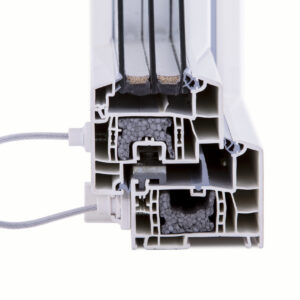

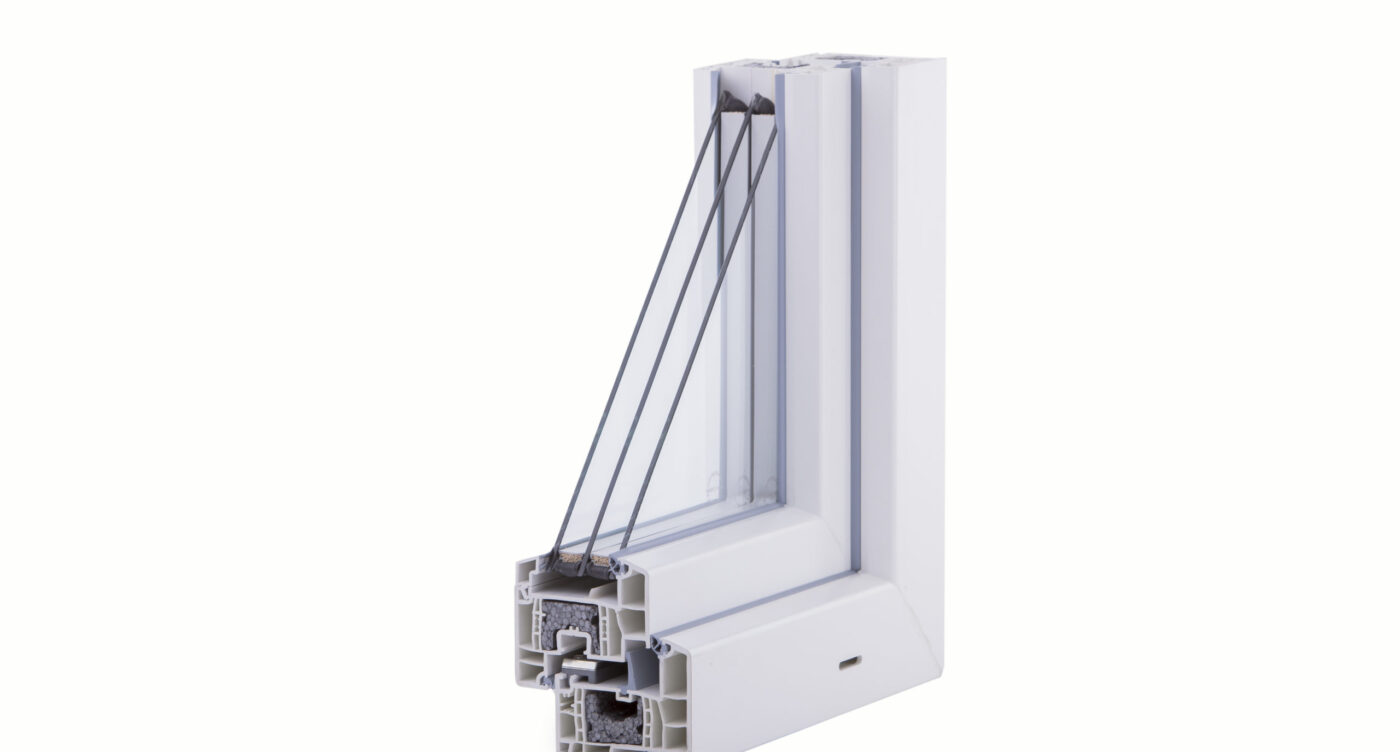

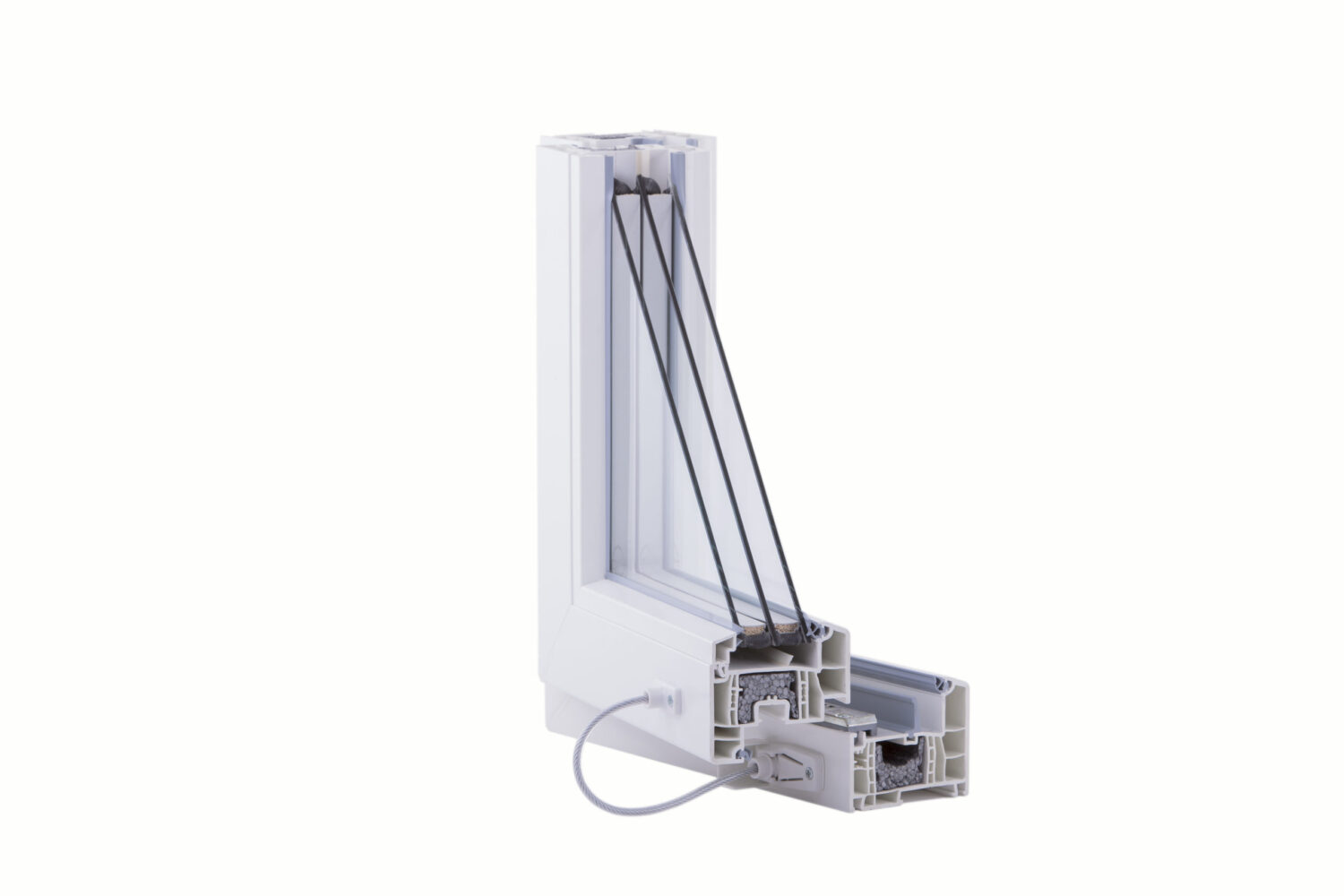

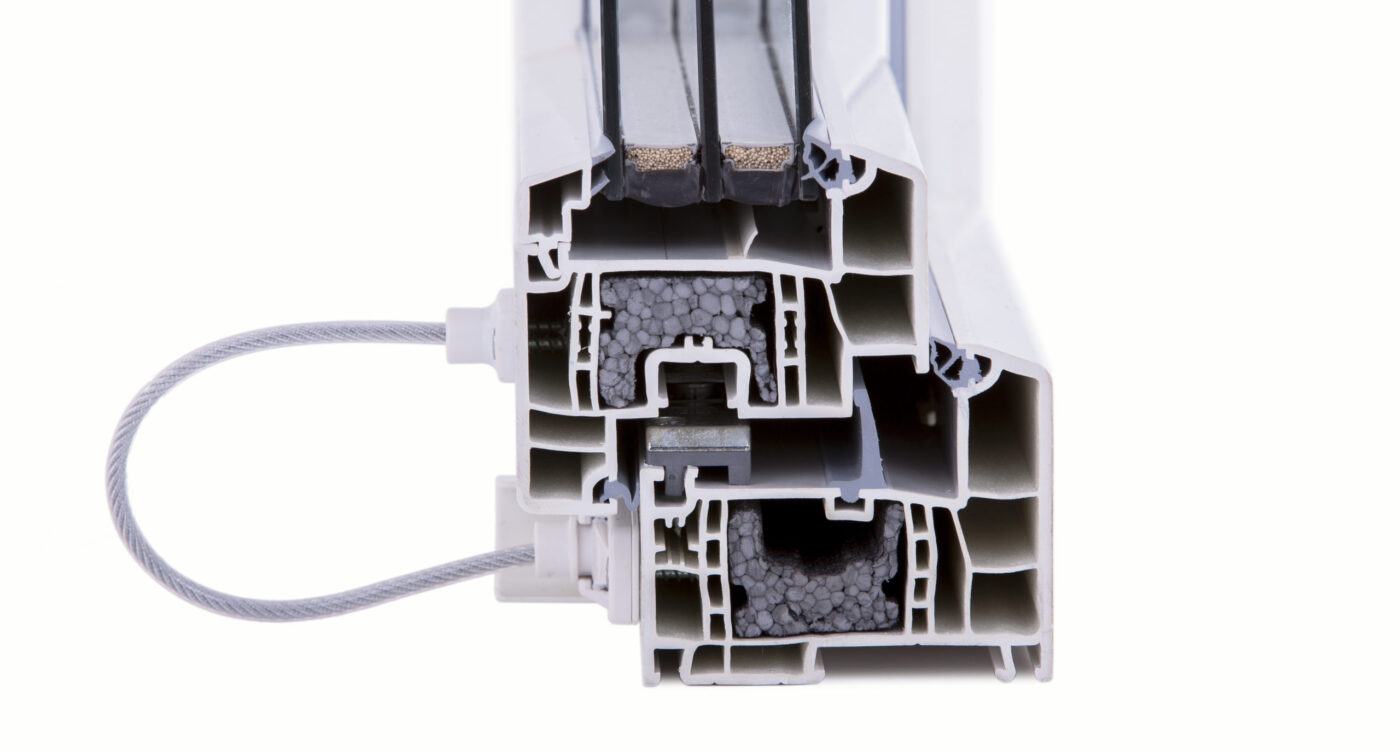

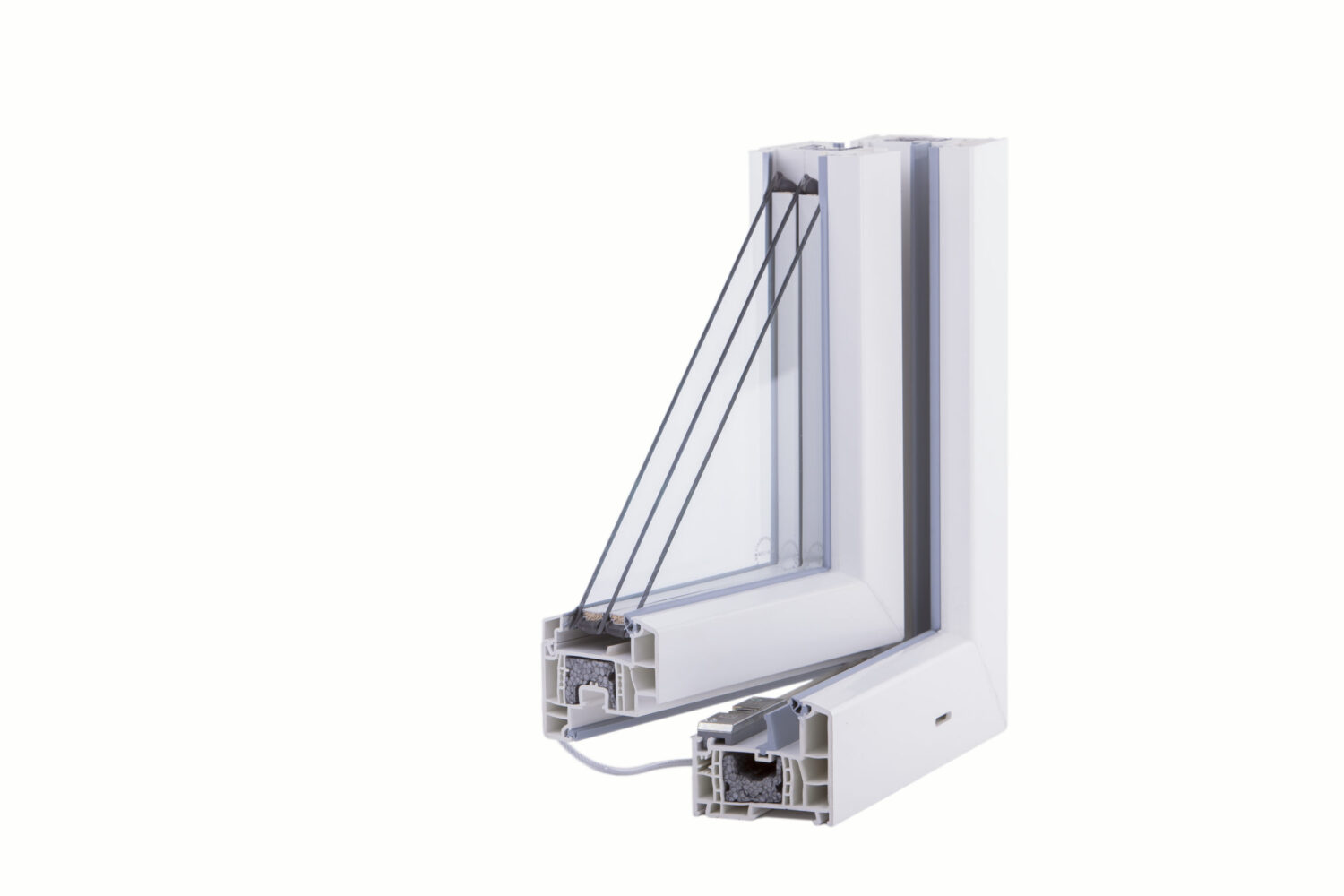

Profile system Gealan S 9000 with 6 chambers

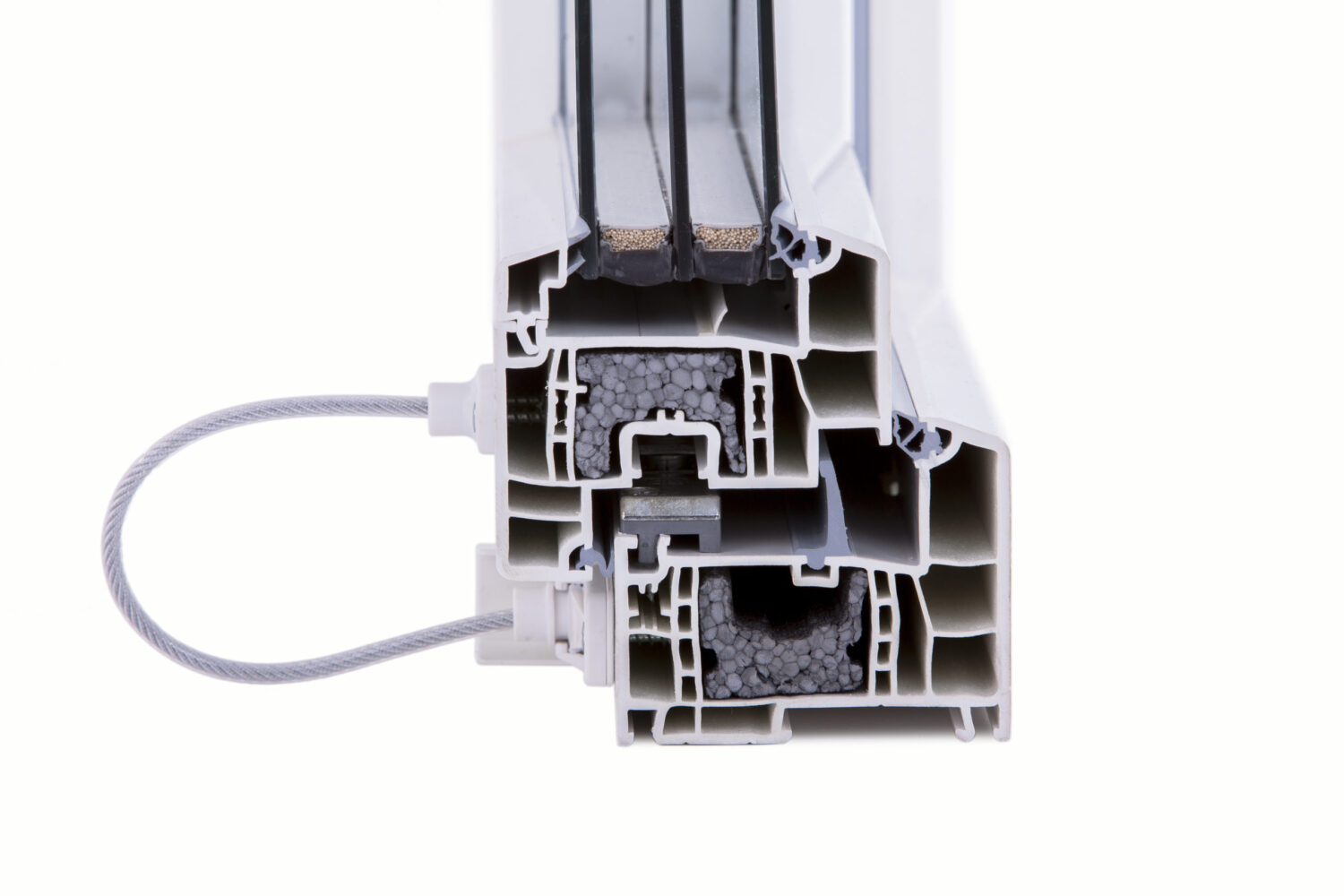

The new window with GEALAN S 9000 triple sealing profile system combines the characteristics and benefits of central and stop seals in equal measure. The large construction depth, six profile chambers in the window frame and profile and three integrated sealing levels guarantee excellent thermal insulation. The windows made of the S9000 profile are in conformity with the requirements of energy-efficient windows.

The advantages of Gealan S 9000 6 chambers profile:

• Profile width: 83 mm
• U (coefficient of heat transmission): 0,77 W/m2K
• Measurements: Made to order
• Fittings: Handles of different colors, with or without locks
• Hinges: G-U, additional security level is available
• Glazing: 52 mm, wide choice of glasses, different type of control
• Beads: Thermo spacer
• Gaskets: Triple
• Additional color choice: laminated on one side / both sides; different wood imitation colors from both sides
• Trickle vent: Gecco 4
• Additional information: Tilt&turn window
